Allow users to capture the images of the paper patterns and save them in the computer.

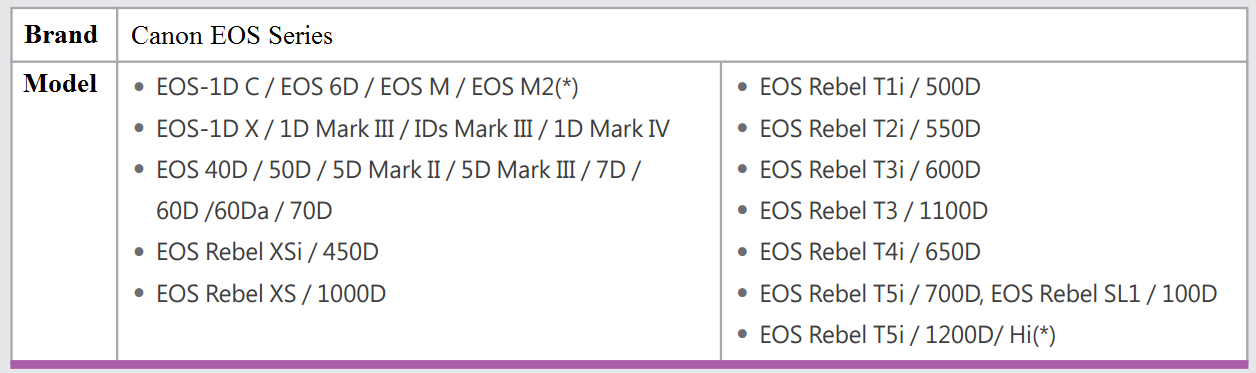

- Support Canon EOS Series
2. The shooting distance need to be more than 110cm.
3. System requirement and recommended hardware specification.
4. Accept V notches tailoring on the pattern (Not accept other painting notches and inner line on the pattern). 5. Can not read multiple patterns drawing in single paper.

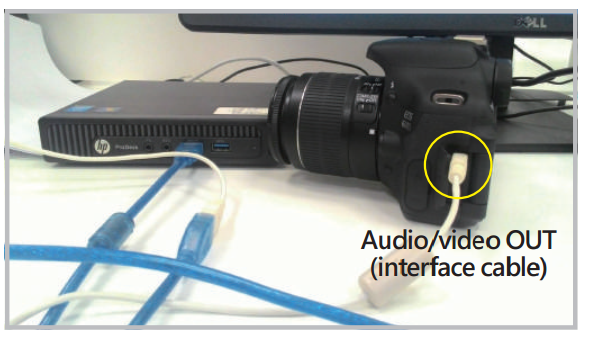

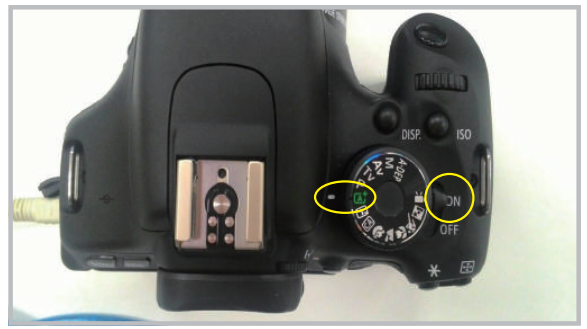

- Set the power switch to [ON] and set the Mode Dial to (Scene Intelligent Auto) > - Connecting the camera to the PC

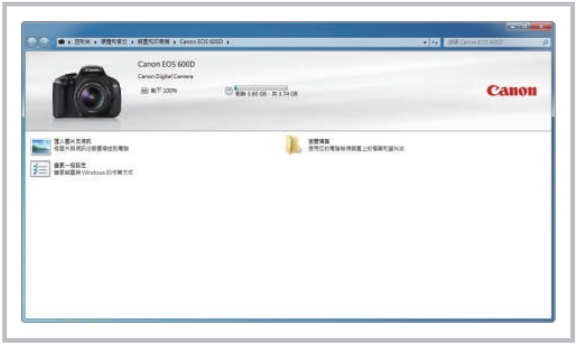

3. The camera is connected to PC successfully when this window pops up

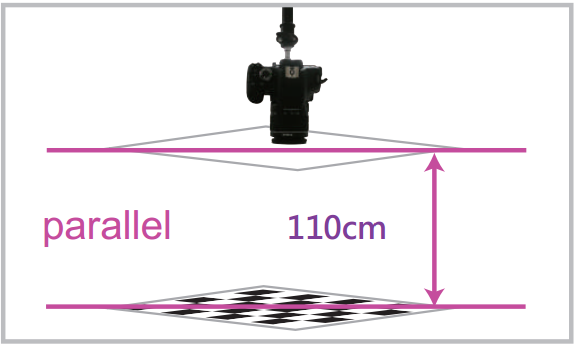

4. Keep your camera and pattern paper parallel, with a distance more than 110 cm.

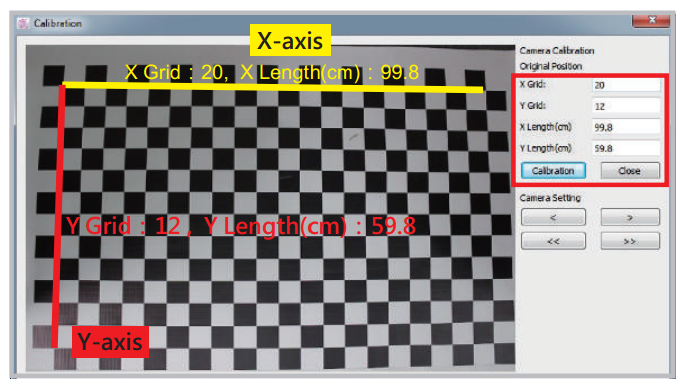

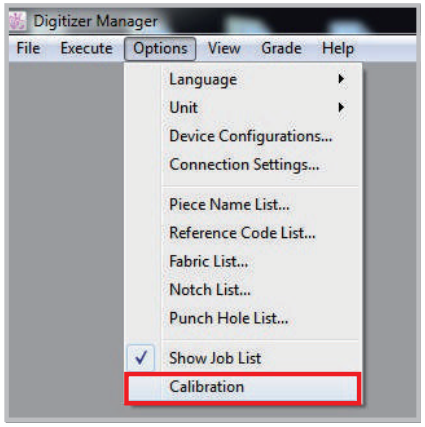

- Open Digitizer Manager, click menu [Options] - [Calibration]. > - Enter original position in X, Y and click calibration. - Pattern Paper must be placed inside the frame from camera preview - Keep pattern X, Y axis parallel to the X, Y axis in camera preview. 3. Calibration Completed → OK.
- Pattern Paper must be placed inside the frame from camera preview - Keep pattern X, Y axis parallel to the X, Y axis in camera preview.

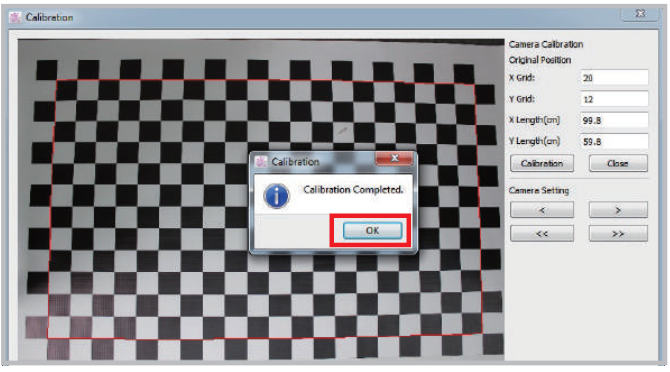

3. Calibration Completed → OK.

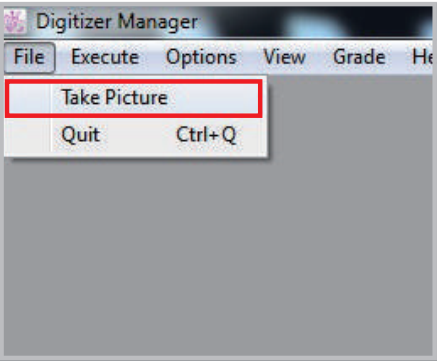

4. Click menu [File] - [Take Picture]

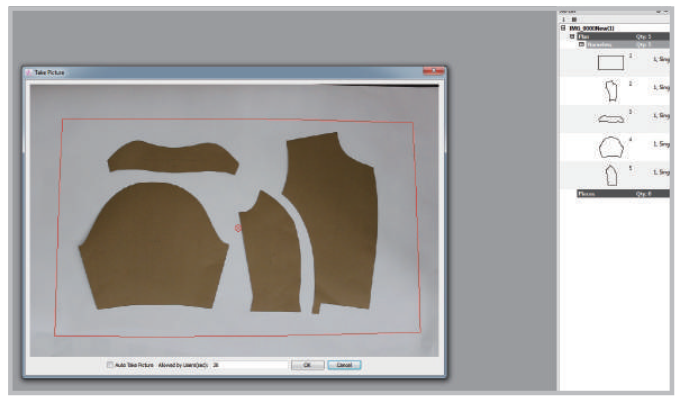

5. Lay a white paper on checker board paper, put patterns on the paper. Click [OK]. Check patterns in your job list.

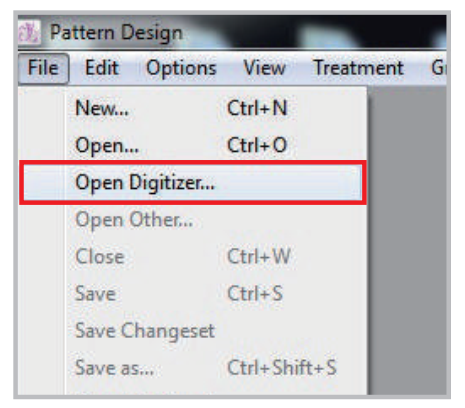

6. Open Pattern Design Application, click menu [File] - [Open Digitizer…].

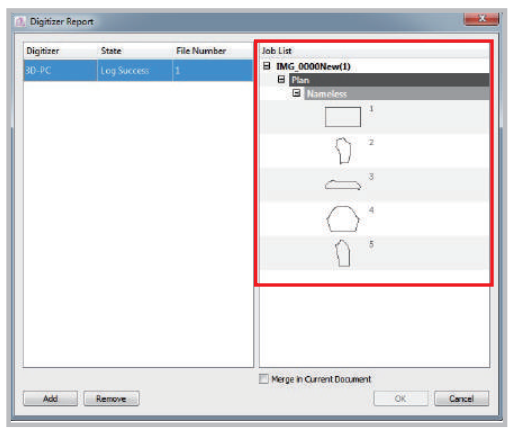

7. Select the “Job List” you want, click [OK] button.

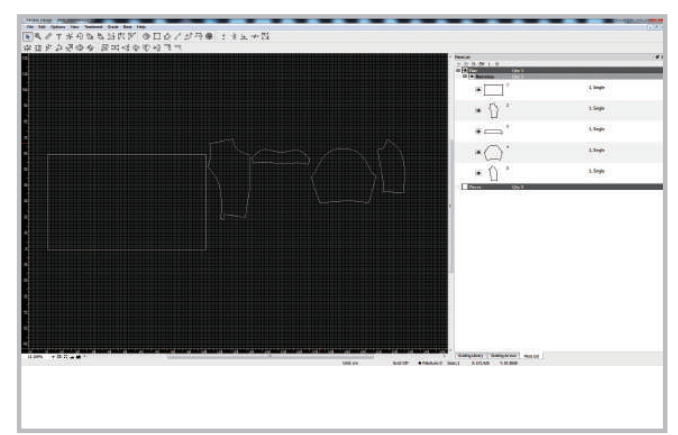

8. Now you can design your patterns in Pattern Design.
