Allow users to create ruffle piece, or develop an exisiting piece into a ruffle.

- Select Ruffle Tool;
- Left-click on the desired location;

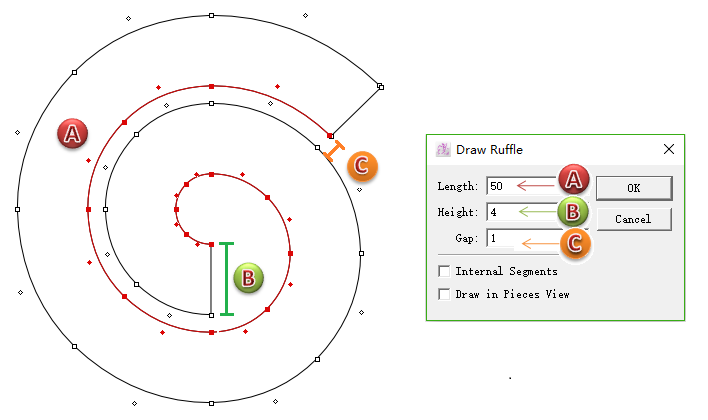

- Dialog box appears, enter values into it, click [OK]. >

Repeat the steps as above.

Internal Segment : draw it as internal contour of the piece, each segment can be removed individually.

Draw in Piece View : draw it as a pattern piece directly.

New in V7.0:

- Activate the piece and select the upper segment;
- Select Ruffle tool;
- Right-click anywhere you wish;
- Hold down the Ctrl key (Windows) or Command key (Macintosh) and select the under segment;
- Right-click anywhere you wish;
- Left-click the fixed point, and input the values or drag the slider to modify the ruffle. >

It also previews the motion when the values are being changed.
