Allow users to to create a circle freehand or according to a precise radius or diameter.

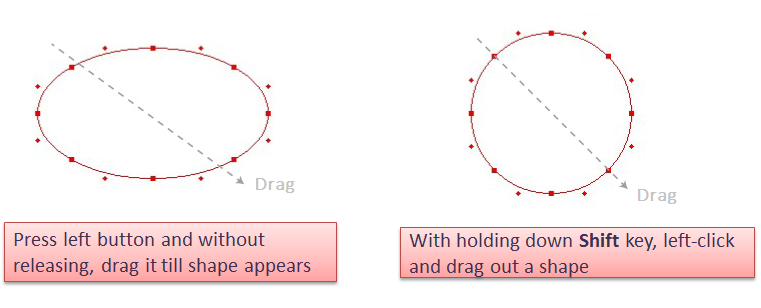

- select , left-click the cursor, do not release the button and then drag out a ellipse.
- select , with holding down Shift key, left-click to drag out a circle. >

- Select tool;
- First click on the desired working area, takes it as the central point of the shape (hold down Shift to draw circle);
- Move the arrow till desired shape appears, then click again to finish drawing the shape.

- Select tool;
- Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, and click on the desired working area;
- Dialog box appears and enter desired values, click [OK];

For example, draw a circle with diameter 10cm: > >

Internal Segment : draw the shape as internal segment of the piece which can be removed.

Draw in Piece : draw the shape as a pattern piece.

New in V7.0: It previews the result.
