tool_image40 Align Points

Allow users to align all the points that are on the selected segment(s) according to two reference points.

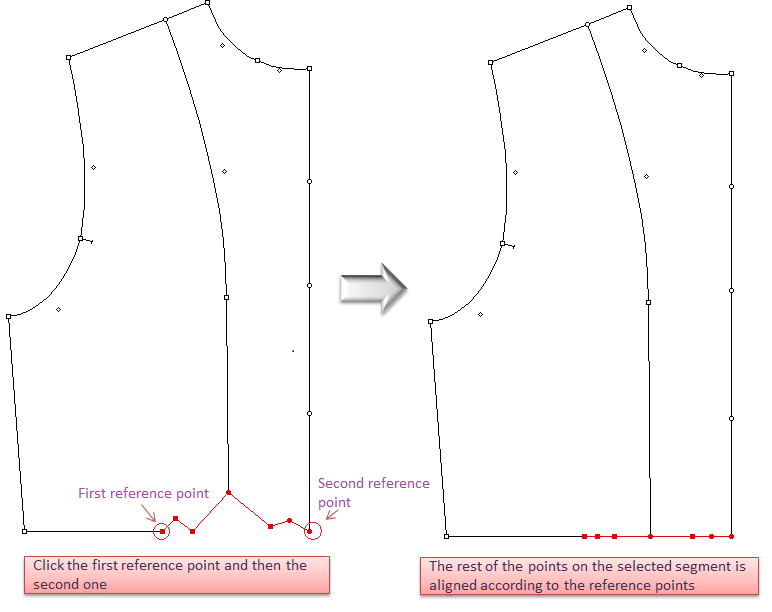

Align points by two clicks

- Select the segment(s) the points you want to align are on;
- Select tool_image40 tool;
- Click the first reference point;
- Click the second reference point.

tool_image41

Align points by one click

- Select the segment(s) the points you want to align are on;
- Select tool_image40 tool;
- Click the first reference point without releasing the mouse button, drag to the second reference point and release it. > tool_image42
