tool_image34 Align Two Points in X / tool_image37 Align Two Points in Y
Allows you to align two points or more on the same horizontal or vertical axis.

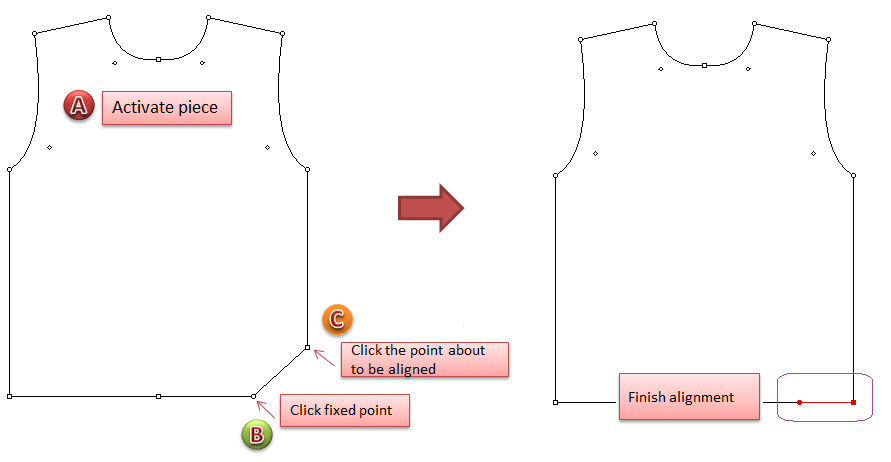

Align two points on the X axis
- Activate the piece;
- Selecttool;
- Click the fixed reference point;
- Click the point to be aligned.

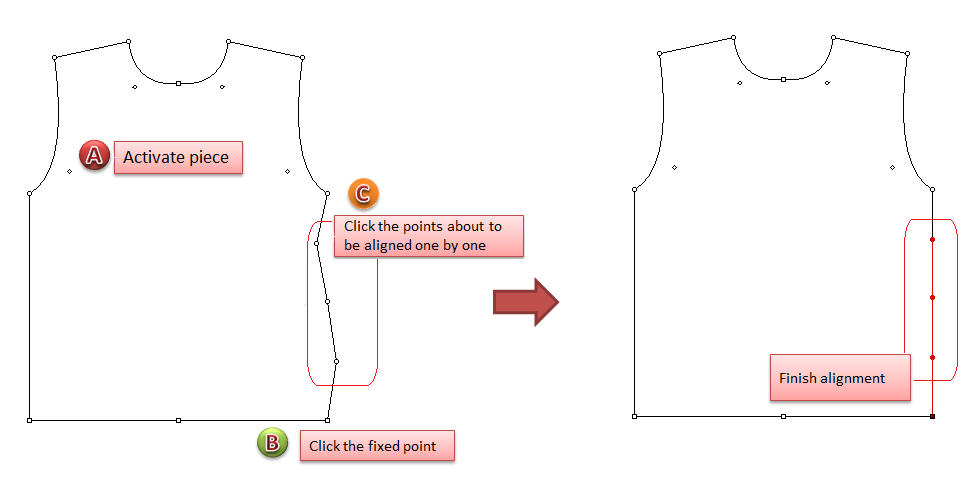

Align many points on the X axis
- Activate the piece;
- Select
- Click the fixed reference point, the pointer turns into a cross;
- Hold down the Shift key, a smaller cross appears next to the larger one. Click points one by one to align them.

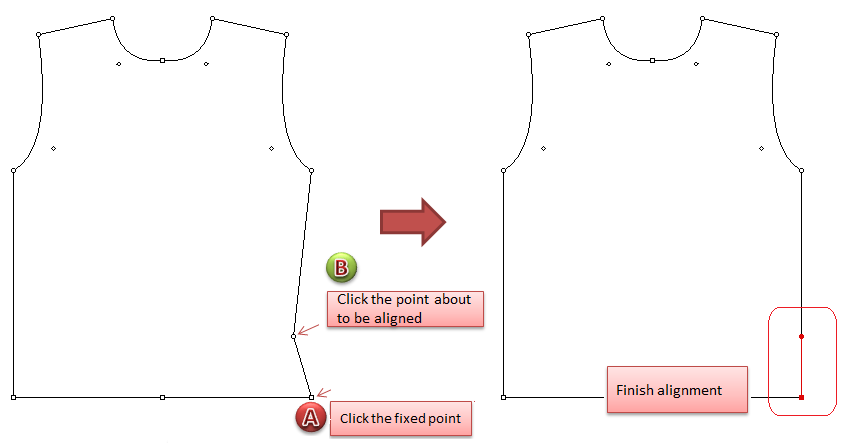

Align two points on the Y axis
- Activate the piece;
- Selecttool;
- Click the fixed reference point;
- Click the point to be aligned.

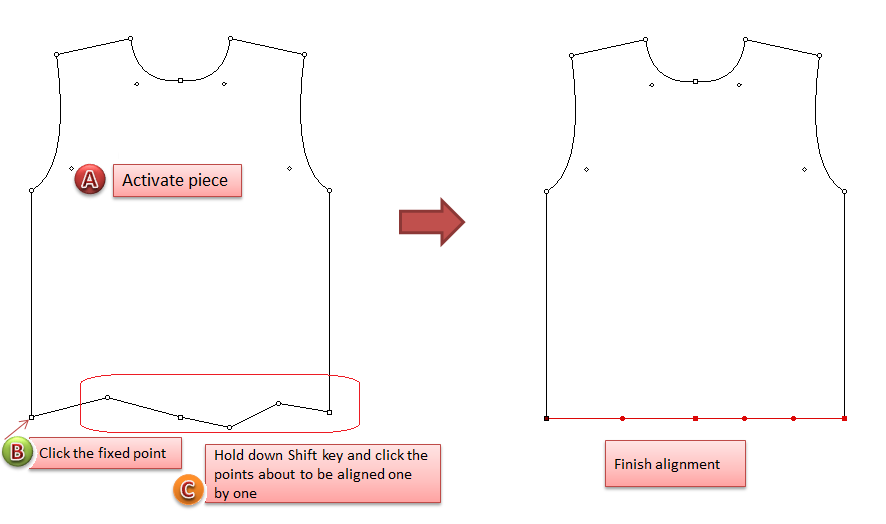

Align many points on the Y axis
- Activate the piece;
- Select
- Click the fixed reference point, the pointer turns into a cross;
- Hold down the Shift key, a smaller cross appears next to the larger one. Click points one by one to align them.
