Before V5.0, the tools are listed in box. Now they are shown in tool bar. Users can select to show tool bar or tool box as they wish.

Click Menu [Option] - [Preference]- [Compatibility], select [Use Floating Tool Box Instead of Toolbars], all the tools are shown in tool box.

Users can make or modify their pattern pieces by using the tools.

Pattern pieces can be modified using different views: Plan, Pieces, Clone and Grading.

Function of each tool in the Toolbox / Toolbars:

The Pointer tool activates or selects the desired elements and / or move them within the working area.

- Select the Pointer tool
- Select the element(s) you wish to move
- Use the directional arrows (Up, Down, Left, Right) to move the elements to the desired location >

Select the [Snap to Grid] item in the Options menu, to move elements according to the active grid.

For more information about [Snap to Grid], please refer to the Options menu, select Preference, Display section in this manual.

- Select the Pointer tool
- Select the element(s) you wish to move
- Move the selected element(s) by clicking one of its sides with the left mouse button (Windows / Linux) or the mouse button (Macintosh) and holding your click

Hold down Ctrl (Windows/Linux) or Command (Macintosh) to activate the Pointer tool when another tool is selected.

Allow users to select several elements one time.

- Select the Pointer tool
- Hold down Shift key, select desired elements(points, segments and so on)

Allow users to select the whole piece by clicking one segment of the piece.

How to do:

- Select the Pointer tool
- Hold down Alt (Windows) or Option (Macintosh) key, click any segment of the desired piece. Entire piece is selected

Allow users to move or adjust the piece by entering values

How to do:

- Select the Pointer tool , choose the desired element (point, segment)
- Hold down Alt + Ctrl (Windows) or Option + Command (Macintosh) key, click the Pointer icon, open the dialog box
- Enter number, click [OK] button

Allow users to orient a notch by using Pointer tool.

- Select the Pointer tool
- Click the tip of the notch without releasing mouse button, move the tip to desired notch orientation.

Allow users to align the nest to the selected point/segment and check the nest.

- elect the Pointer tool , the point or the segment associated to the grading you want to move
- Hold down Alt + Ctrl (Windows) or Option + Command (Macintosh) key, then click the Pointer tool icon
- The grading nest moves to the new origin or orient itself according to the selected point/segment

Enlarge or reduce the view of working area or specific element.

Enlarge: Select , the arrow converts to a magnifying glass, click the area you want to enlarge

Reduce: Select , hold down Alt (Windows) or Option (Macintosh) key, the arrow converts to a minifier glass, click the area you want to reduce

Allow you to get a closer or farther view of specific part.

How to do:

- Select tool, click the desired area, or click to drag out a dotted rectangle to enlarge the view; if want to reduce the view, repeat the former step with holding down Alt (Windows) or Option (Macintosh) key
- Release the mouse button, desired part is shown in the central of working area

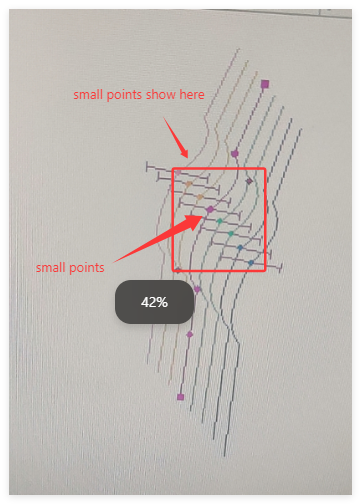

Allow users to set a zoom level up to a maximum of 2000% and down to a minimum of 0.5%.

Allow user to the pointer can be transformed into the Zoom In / Out tool when another tool is selected.

Activate Zoom In: hold down Ctrl+Shift+Space (Windows/Linux) or Command+Shift+Space (Macintosh) key

Activate Zoom out: hold down Alt+Ctrl+Space (Windows/Linux) or Option+Command+Space (Macintosh) key

or:

Activate Zoom In: hold down Space and roll up the mouse wheel

Activate Zoom Out: hold down Space key and roll down the mouse wheel

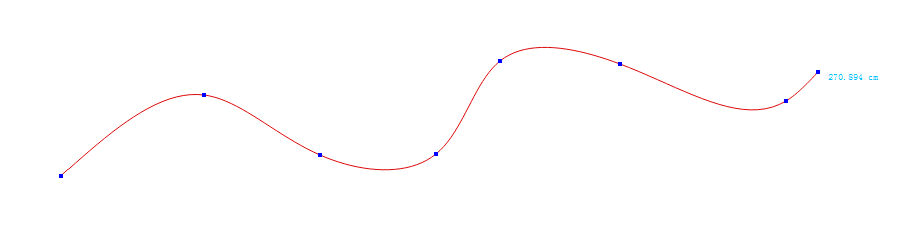

Allow users to measure the distance between two points, or the length of the selected segment.

- Select tool
- Left-click the first reference point and then the second one; or left-click the firsth reference point without releasing the mouse button and drag it to the second one, then release it
- The dialog box appears to show the values, allow users to select the desired items

The [Copy] button allow users to copy the values in the dialog box and paste these values into Notepad or another word processing application.

Users can keep the dialogs open and take measure on another piece. Two dialogs appear and allow users to compare the measurement.

- Select the desired element (if several segments are selected, the measurement result is the total length of selected several segments)
- Select tool
- Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, then click working area at random
- The dialog box appears, the values are shown as following image (if the segment is not graded, it only shows medium size in the dialog box; if the segment was graded, it shows values of all the sizes in the dialog box)

Users can select and copy the items. If want to make a multiple continuous selection in the list, hold down Shift key, select the first item then click the last one (or drag from first item to the last one); this selects all items in between as well.

To make a discontinuous multiple selection in the list, hold Ctrl (Windows / Linux) or Option (Macintosh) key and click all the sizes you wish to select;

The [Copy] button allows users to copy the values in the dialog box and paste these values into Notepad or another word processing application. And the copied values can be used in grading with Segment Length tool.

For more information about how to use the copied value in piece grading with Segment Length tool, please refer to following introduction section of Segment Length.

Allow users to write notes on the selected piece or on the working area.

New in V7.0:

In addition to select the letter size by pulling down the menu, users can also input the size as wish:

- Select tool
- Click the desired text location on the working area, the dialog box appears
- Input text, select or input letter size, then click [OK] >

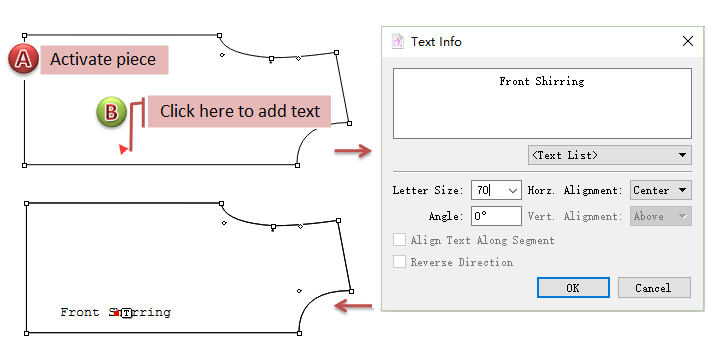

- Activate the piece
- Select tool
- Click the desired location on the piece (e.g. segment), input the text in the dialog box, select or input letter size

If the text is too small to see, keep clicking the “T” to check the text.

- Select the desired segment
- Select tool
- Click one of the two start point of the segment to open the dialog box, write the text, and select [Align Text Along Segment] item. After select or input the letter size, click [OK]

Users can align the text along segment vertically in several ways as desired: >

> or make text alignment horizontally, like:

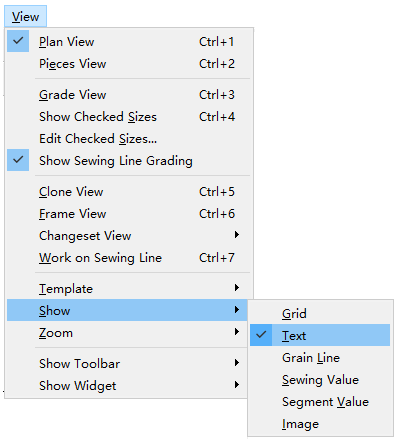

If it only shows the smalltext icon “T” without text, click menu [View] - [Show] - [Text] to show the text.

- Select the text reference point right next to the text icon
- Click Menu [Treatment] - [Item Info…], open [Text Info] dialog box
- Modify the information, click [OK]

Allows users to flip selected element(s) or a complete pattern piece on an axis defined by two reference points.

- Select desired element or piece
- Select tool
- Click the first reference point
- Click the second reference point

Different operation in V7.0:

- Select desired element or piece
- Select tool
- Click the first reference point. When the cursor is moving, the axis appears and users can preview the flipped result. Dialog appears after the cursor to show the angle info.
- Click the second point

- When you hold and move the point, you can view the symmetry angle in the info bar. >
- Hold down Shift key (Windows, Macintosh or Linux) if you want to constrain the symmetry axis in either the X or Y axis, or 15°. Define the angle by the setting Round Angle in the [Preference] menu.

3. Select the Snap to Grid item, in the Options menu, to move elements according to the active grid.

For more information about [Snap to Grid], please refer to the Options menu, select Preference and Display section.

V6.0 ：

- Select desired element or piece
- Select tool
- Hold down the Alt (Windows) or Option (Macintosh) or Alt + Windows (Linux) key, and click anywhere on the working area.
- Dialog box appears, enter desired value, then click [OK] button

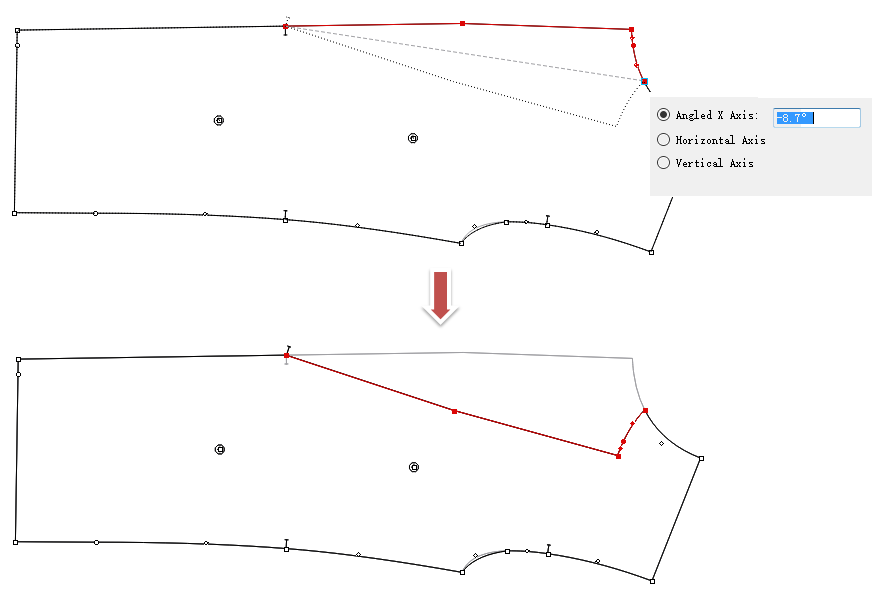

Different operation in V7.0:

- Select desired element or piece
- Select tool
- Click the reference point and move the cursor, dialog appears: > 1. Enter angle value, press Enter key on keyboard to confirm > > 1. If want to select [Horizontal Axis] or [Vertical Axis] item, enter any value in [Angle] item, then use Tab key to select. Press Enter key to finish operation

Allow users to rotate the selected element or an entire piece.

V6.0 ：

- Select the desired element or piece
- Select tool
- Click the first reference point (as the pivot point)
- Click the second reference point without releasing the mouse button, a reference dash guideline going from the first point to the second point appears. Those two lines represent an angle.
- Pivot the guideline to the desired rotation angle

Hold down Shift key to constrain the rotation angle (every 15°)

Difference in V7.0:

- Select the desired element or piece
- Select tool
- Click the first reference point (as the pivot point)
- Click the second reference point, move the cursor. Meanwhile, the dialog box appears in the lower-right corner, rotation angle and result are shown
- Move the cursor to make desired angle, left-click any where to finish operation

V6.0 ：

- Select the desired element or piece
- Select tool
- Hold down Alt (Windows) or Option (Macintosh) or Alt + Windows (Linux) key
- Click the pivot point to open the dialog box, enter desired angle value, then click [OK] button

Positive value for counter-clockwise rotation while negative value for clockwise rotation.

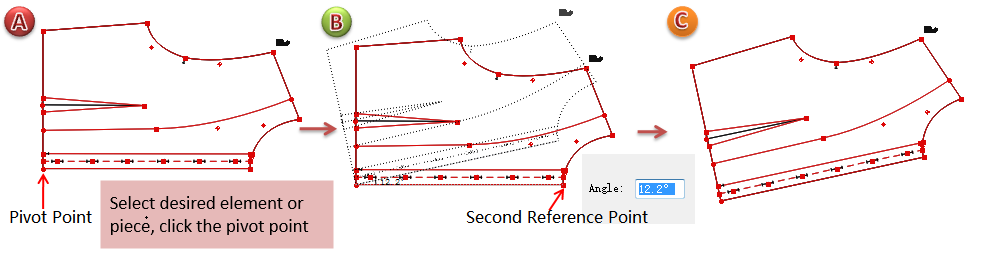

Difference in V7.0:

- Select the desired element or piece
- Select tool
- Click the pivot point
- Click the second reference point, move the cursor. Meanwhile, the dialog box appears in the lower-right corner, rotation angle and result are shown. Enter desired angle value directly
- Left-click any where or press Enter key to finish operation

Allows users to orient the activated piece(s) starting from two reference points on the horizontal axis.

- Activate the element(s)
- Select tool
- Click the first reference point
- Click the second reference point, the activated element(s) are oriented on a horizontal line according to the reference points

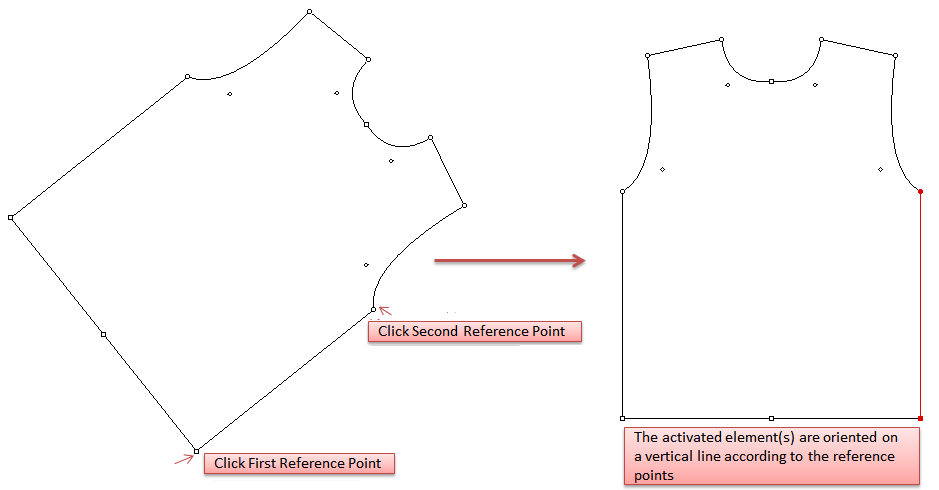

Allows users to orient the activated piece(s) starting from two reference points on the vertical axis.

- Activate the element(s)
- Select tool
- Click the first reference point
- Click the second reference point, the activated element(s) are oriented on a vertical line according to the reference points

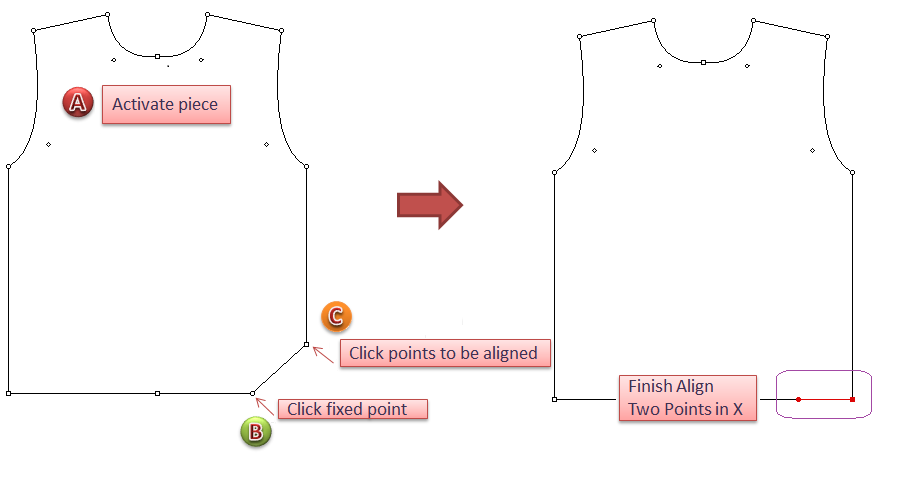

Allows users to align two points or more on the same horizontal axis.

- Activate the piece(s) the two points you want to align are on.
- Select tool.
- Click the fixed reference point (the second point moves according to a vertical axis for horizontal alignment with the fixed reference point)
- Click the point to be aligned

- Activate the piece(s) on which are the points you want to align
- Select tool
- Click the fixed reference point (the following points will be aligned according to this point), the cursor turns into a cross
- Hold down Shift key, a small + appears near the cross, then click the points one by one

Allows you to align two points or more on the same vertical axis.

- Activate the piece(s) the two points you want to align are on
- Select tool
- Click the fixed reference point
- Click the point to be aligned

- Activate the piece(s) the points you want to align are on
- Select tool
- Click the fixed reference point
- Hold down Shift key, a small + appears near the cross, then click the points one by one

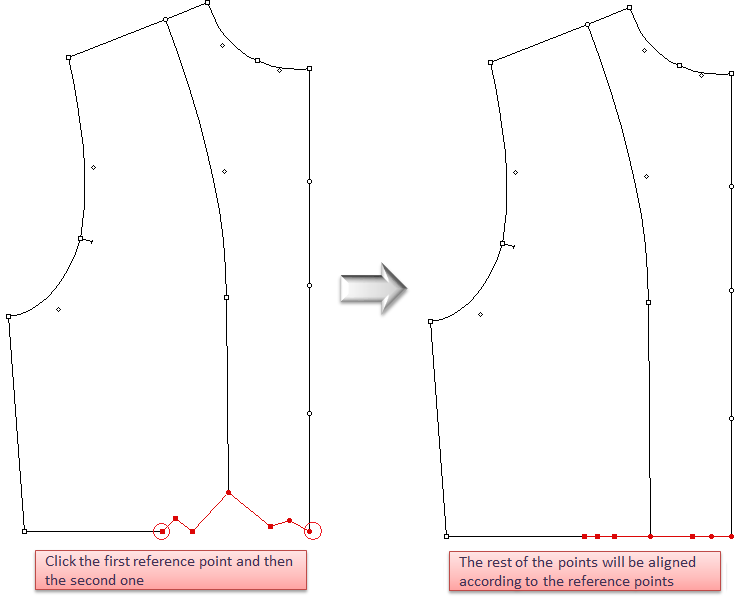

Allows users to align all the points that are on the selected segment(s) according to two reference points.

- Select the segment(s) the points you want to align are on
- Select tool
- Click the first reference point
- Click the second reference point

- Select the segment(s) the points you want to align are on
- Select tool
- Click the first reference point without releasing the mouse button, drag the cursor to the second reference point and release the button

Allows you to create a circle freehand or according to a precise radius or diameter.

- Select tool, left-click desired location without releasing the mouse button, drag to draw a desired ellipse
- Select tool, hold down Shift key, left-click desired location without releasing the mouse button, drag to draw a desired circle >

New in V7.0:

The operation to draw shape is the same as above, the difference is that a dialog box is appearing after the cursor, showing the specific value, and allowing to enter new value.

V6.0 ：

- Select tool
- Hold down Alt (Windows) or Option (Macintosh) key without releasing the mouse button.
- A dialog box appears, enter desired value and click [OK] button

For example, draw a circle with a diameter of 10cm:

Internal Segments: select this item to draw the ellipse/circle as internal segment attached to a piece, and its single segment (the segment between two points) can be deleted as it is not closed contour

Draw in Pieces View: The new ellipse/circle appears in Pieces View

New in V7.0:

For example, draw a circle with a diameter of 10cm:

- Select tool
- Left-click the desired location, the dialog box showing values appears after the cursor
- Enter 10 in [Height] item, the rest of the items in the dialog box appears, then enter the same value in [Width] item
- Left-click any where or press Enter key to finish operation

If the [Full Axis] item was selected before, reselect the [Half Axis], then it will remeber the option made last time.

Allows users to create a square or a rectangle freehand or according to precise measurements.

- Select tool, click at the starting point and hold down the left mouse button, drag out a desired rectangle
- Select tool, hold down Shift key, click at the starting point and hold down the left mouse button, drag out a desired square

New in V7.0

The operation drawing rectangle is the same as above, the difference is that a dialog box showing values appears after the cursor during the process, and it allows users to enter desired value.

V6.0 ：

- Select tool
- Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, click desired location
- Enter value or select option in the dialog box
- Click [OK] button

For example: draw a rectangle with a height of 10cm and a width of 20cm.

Internal Segments: select this item to draw the shape as internal segment attached to a piece, and its single segment (the segment between two points) can be deleted as it is not closed contour

Draw in Pieces View: The new shape appears in Pieces View

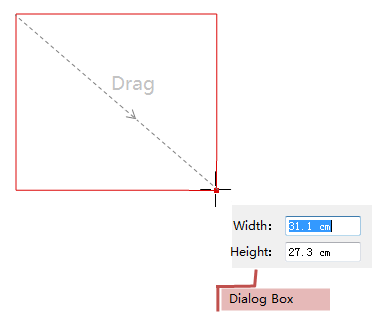

New in V7.0

For example, to draw a rectangle with a width of 35cm and height of 25cm. 1. Select tool 2. Left-click the desired position then move the cursor, the dialog showing values appears after the cursor 3. Enter 35 in [Width] item, the rest of the items appear, enter 25 in [Height] 4. Left-click any where or press Enter key to finish operation

If want to draw a square, enter the same values in both items, then left-click any where or press Enter key to finish operation.

Allows you to create a polygon freehand.

- Select tool
- Click the starting point, move the cursor, a dash line going from the starting point appears, move it to the desired location and
- Click the second point, move the dash line to desired location
- Repeat the last step as many times as necessary to get the desired polygon

Allows you to draw a segment anywhere on the working area by cursor only or entering precise value.

- Select tool
- Click the starting point and hold down the left mouse button (Windows / Linux) or the mouse button (Macintosh), drag the cursor to the desired location.

Hold down the Shift key to draw horizontal or vertical segemnt.

New in V7.0

The steps of drawing segment are the same as that of V6.0, but in V7.0, it shows the specific value in the dialog box following the cursor.

- Activate the piece
- Select tool
- Click the desired location on the piece (this point is the start point of the segment), move the cursor to desired location (end point) and click again

New in V7.0

The steps of drawing segment on the piece are the same as that of V6.0, but in V7.0, it shows the specific value in the dialog box following the cursor.

For example, draw a segment attached to the piece, also need to activate the piece at first.

V6.0 ：

- Select tool
- Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, click the point as segment’s start
- Dialog box appears, enter desired value and click [OK] button

New in V7.0

For example, draw a segment attached to the piece, also need to activate the piece at first.

- Select tool
- Click the point as segment’s start, move the cursor, the dialog box showing value appears after the cursor
- Enter 15 in [Length] item, meanwhile, the rest of the items appears, then enter values in other items, like -60 in [Angle] item
- Left-click any where or press Enter key to finish operation

Allow users to create curve by using this tool. Users can draw the curve directly, and do not have to use Segment Tool to draw a segment and then drag it into curve by using Curve Tool; allow users to move a group of control/regular points by entering desired value or by freehand, which improves the efficency of pattern-making.

Select Curve Tool, left-click to draw a curve. Three points make a curve.

1. Three points make a curve. Because the limition of points, the curve is not smooth enough, so users can add more points on the curve by using Add Point Tool to adjust the curve. >

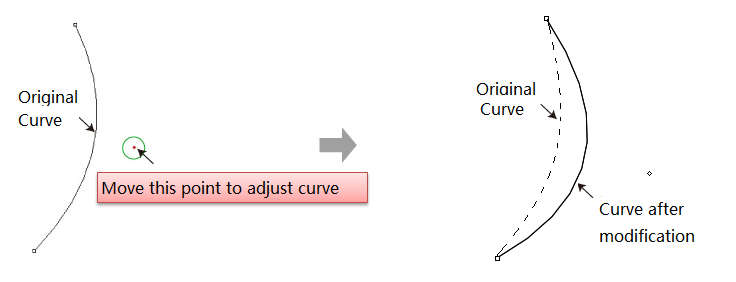

2. Allow users to move the curve point to modify the bending of the curve. >

- Select the desired curve;
- Select Curve Tool;
- Left-click one of the curve point without releasing the mouse button, drag the curve to desired area then release the button. >

- Select the desired curve;
- Select Curve Tool;
- Hold down Alt key (Windows) or Option key (Mac), left-click the desired point or segment;
- Dialog box appears, enter specific number and click OK. >

New in V7.0

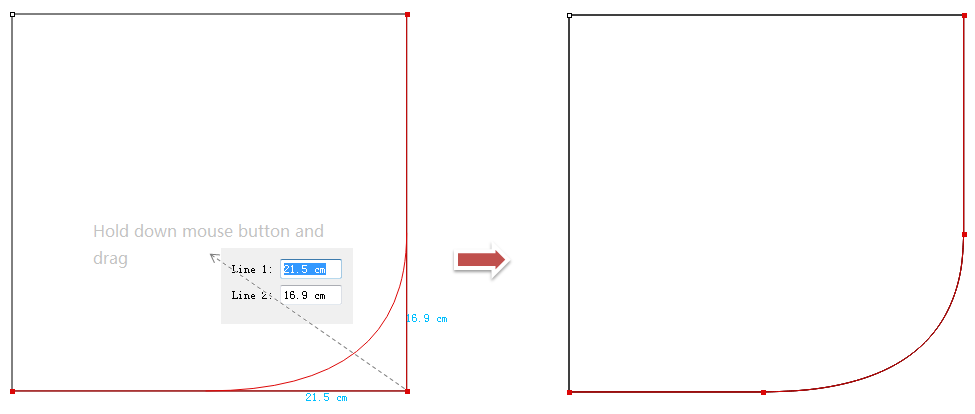

Turn the angle into rounded corner by dragging or entering number directly.

How to do:

- Select two desired segments
- Select Curve tool
- Left-click to drag the angle point upwards to make rounded corner, during this process, the values are shown. Allow users to enter desired
- Left-click any where to finish operation

Allow users to draw parallel line by dragging the cursor, accelerate the efficiency of pattern-making.

V6.0 ：

- Select the desired reference segment (it can be a segment in the same piece or several segments that are connected, or the contour of a closed piece )
- Select tool
- Left-click the reference segment, move the cursor, a dotted line appears (you can see the values on the info bar in the lower-right corner of the window)
- Move the dotted line to desired position, left-click to locate it

New in V7.0

The steps of drawing parallel line are the same as above, but in V7.0, it shows the dialog box instantly after the cursor, enable users to check the value, or enter desired value.

V6.0 ：

- Select the desired reference segment (it can be a segment in the same piece or several segments that are connected, or the contour of a closed piece )
- Select tool
- Click either side of the selected segment(s), depending on which side you want the parallel line(s) to be
- Enter value, click [OK] button

New in V7.0

- Select the desired reference segment (it can be a segment in the same piece or several segments that are connected, or the contour of a closed piece )
- Select tool
- Left-click the reference segment
- Move the segment to desired direction, a dash line that simulates the parallel line appears, and a dialog box showing values appears after the cursor
- Enter specific value (e.g.5cm), then the rest of the items appears, enter value or select item as wish
- Left-click any where or press Enter key to finish operation

Enable users to make the pattern pieces of ruffle hem or A-line skirt, increase the efficiency and save time.

V6.0 ：

- Select Tool;
- Left-click on the desired location;
- Dialog box appears, enter values into it, click [OK].

New in V7.0

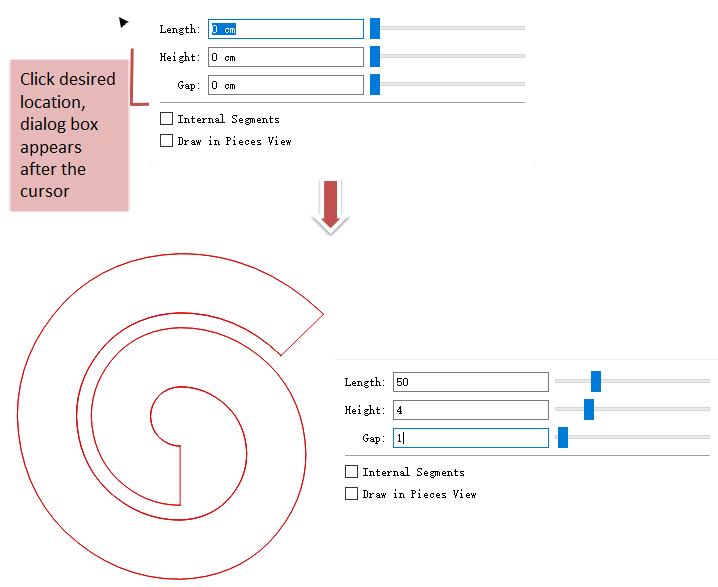

- Select tool
- Left-click desired position, and the dialog appears after the cursor
- Enter desired values (use Tab key to move to next item), or drag the slider to modify the ruffle
- Left-click any where or press Enter key to finish operation

V6.0 ：

Repeat the steps as above.

New in V7.0

Repeat the steps as above:

Internal Segments: select this item to draw the shape as internal segment attached to a piece, and its single segment (the segment between two points) can be deleted as it is not closed contour

Draw in Pieces View: The new ruffle appears in Pieces View

New in V7.0

For facilitating users to modify pieces, the feature of Ruffle tool is enhanced. Now users can develop an existing piece(s) into ruffle easily and quickly.

How to do:

- Activate the piece and select the upper segment;
- Select tool;
- Right-click anywhere you wish;
- Hold down the Ctrl key (Windows) or Command key (Macintosh) and select the under segment;
- Right-click anywhere you wish;
- Left-click the fixed point, and input the values or drag the slider to modify the ruffle. >

New in V7.0

The new tool facilitates users to draw a continuous and accurate spline easily and quickly. Create Spline also allows users to curve a straight line or make a parallel without converting other tools.

To draw a continuous spline without point limitation:

How to do:

- Select tool;
- Draw a spline by continuous left-clicking on the desired area and right-click to finish drawing.

It will be a straight line if just click two points.

- Selectr tool
- Right click the spline to show up all the points
- Edit the spline：

3.1 Left click the point (keep hold down and do not release it), drag the point to the desired position; or left click to select the point, and then press the arrows on the keybord to move the point.

3.2 Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, left click the point which you want to move (keep hold down and do not release it), then move the mouse to edit the spline’s shape.

Allow users to snap the curve points by entering precise value.

How to do:

- Select a reference point (like Point a);
- Select tool;
- Hold down Alt key (Windows) or Option key (Macintosh) and click on the blank space;
- Enter 2.5 to Distance X and 3 to Distance Y, click OK;
- Point c appears, then connect Point c and Point b by spline. >

- Select Line A;
- Select tool;
- Hold down the Alt key (Windows) or Option key (Macintosh) and left-click Point 1;
- Enter 3 cm to Along Segment in the dialog box. >

- Select Line A;
- Select tool;
- Hold down Alt key (Windows) or Option key (Macintosh) and left-click Point a;
- Enter 3 to Radius;
- Click OK button.

Help users to snap the central point of the selected reference segment.

How to do:

- Activate desired piece;
- Select tool;
- Move the cursor to Line A, the blue point, also the central point of Line A turns up. >

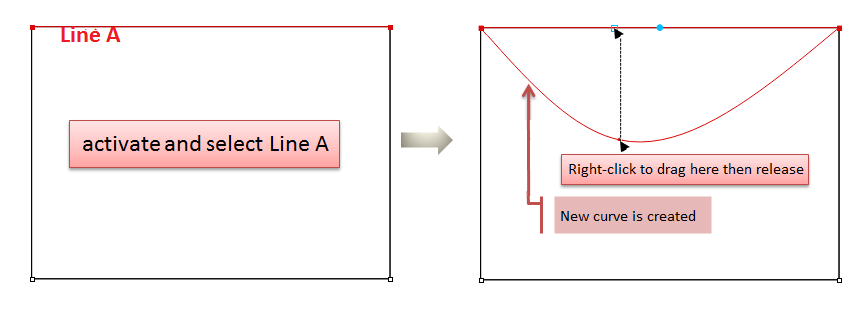

Right-click to drag the selected straight line into a curve.

How to do:

- Activate desired piece, select Line A (your desired segment);
- Select tool;
- Move your cursor to Line A, right-click to drag it till desired shape. >

Drag the selected spline with left-clicking to draw parallel line.

- Activate desired piece, select Line A (your desired segment);
- Select tool;
- Move your cursor to Line A, left-click to drag it to desired position. >

For example, Create Spline can help users finish draw the red spline shown below.

How to do:

- Activate the piece and select Segment A;
- Select tool;
- Hold down the Alt key (Windows) or Option key (Macintosh) and left-click point#1;
- Input the values of Along Segment in the dialog box, a point will appear in Segment A and left-click it;
- Move the mouse to line B, it will snap the middle point of Segment B automatically;
- Left-click the middle point of Segment B;
- Hold down the Alt key (Windows) or Option key (Macintosh) and left-click the point#2, input values in Distance X and Distance Y, the point will appear, then left-click it;
- Move the mouse to line C, the middle point of Segment B will appear automatically, then left-click it;
- Right-click to end drawing.

Press Z key on the keyboard to undo the former point;

Left-click to add point with holding down the Shift key. Left-click to select the point wanted to be deleted with holding down the Ctrl key (Windows) or Command key (Macintosh) then press the Backspace key on the keyboard;

If users want to modify the shape of the existing spline, select Create Spline tool, then right-click the spline. The points appear so drag them to modify.

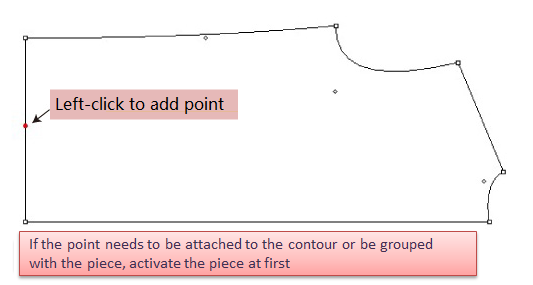

Allows you to add a point on a piece or within the working area where the click is made.

- Select tool;
- Click the desired location.

To add a point to a piece, activate the piece at first.

V6.0 :

- Activate the piece;
- Select tool;
- Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, left-click a reference point (point with the coordinates 0, 0);
- Open the Point dialog box, enter value, and click [OK] button.

New in V7.0

- Activate the piece;
- Select tool;
- Left-click the reference point, the dialog box appears instantly after the cursor;
- Enter desired value, like entering 1 in [Distance X] item, then the rest of the items appears. Enter values in desired items;
- Left-click any where or press Enter key to finish operation

New in V7.0

Taking a point as reference, users can add a new point on the desired segment with specific length. The distance between that two points is the specific value the user input in Single Compasses dialog box.

For example: now we are going to draw a segment intersects Segment A at the new point Point 2. And the length of the segment (between Point 1 and Point 2) is 15 cm.

How to do:

- Select Point 1 and Segment A;
- Select Add Point to Segment tool;
- Click Reference Point 1, the dialog box appears lower-right corner of the cursor. Enter value in Distance X, the rest of items are shown;
- Enter value 10 in [Compasses] (as the default unit is cm, it works even though enter number without unit)
- Left-click any where or press Enter key on your keyboard to finish operation. >

Allows users to add a point on an intersection between two lines or to merge two points one on top of the other; or break the point on the internal cross lines (new in V7.0). To attach segments, the elements users intend to merge must be part of the same group, otherwise, users need to make them a group.

- Activate the piece which the segments are on, or select the intersecting segments; > #### NOTE >
- Select tool;
- Click the intersection

New in V7.0

Allow users to break the point on the cross lines (internal lines only). It helps users combine or break point more easily, accelerate the efficiency of making patterns.

How to do:

- Activate the desired piece;
- Select Attach Segment tool;
- Hold down the Shift key, left-click the intersection point;

The following picture shows the result. Use Pointer tool to drag the points to check if they have been broken.

Allow users to add point to segment.

- Select the desired segment;
- Select tool;
- Click the start point (must be one of the extremities of the segment);
- The [Add Point to Segment] dialog box appears, enter desired value and click [OK] button.

Enter a positive value, the point is located on the segment; enter a negative value, the point is located outside the segment.

- Select the desired segment of medium size;
- Select tool;
- Hold down the Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, the cursor becomes a cross, left-click the start point (must be one of the extremities of the segment);
- Input the desired values in the dialog box, and click [OK] button:

Often used for adding notches in right position.

New in V7.0

Notch option is added to the dialog box, users can add a point and a notch at the same time:

Allows users to divide a segment into several parts equally.

- Select the segment.
- Select the Divide Segment tool.
- Click the segment, the [Division Segment] dialog box opens, enter the desired quantity of division.

NOTE: The number of divisions is up to 1000.

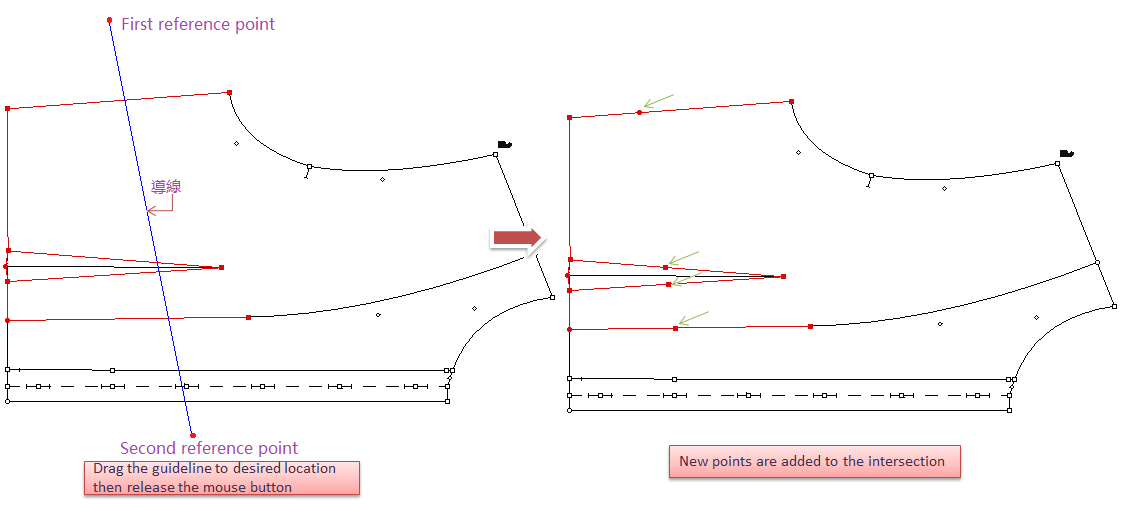

Allows users to add points on selected segments that are aligned from a projection guideline.

- Select the segment(s) where points are required;
- Select tool;
- Click the desired location of the first reference point, then click the desired location of the second reference point, hold down the left mouse button (Windows / Linux) or the mouse button (Macintosh), a guideline appears;
- drag it to the desired location, release the mouse button;
- Points appear on all the selected segments intersecting the guideline.

- Select the segment(s) where points are desired.
- Select tool.
- Hold down the**Alt** (Windows) or Option (Macintosh) or Alt +Windows (Linux) key, the arrow turns into a cross, then click the reference point;
- The dialog box appears, enter at which distance from the reference point you want to add a point and select the radio button for the required axis (horizontal or vertical).

In V7.0, allow users to previews the result when enter the value.

Simulate to close the dart(s) / shirring, or merge the pieces together, and to adjust the contour as desired by using this tool.

Before using this tool, recommend the users to enable the Shadow function, so that uesrs can check and compare the results.

- Select desired element (the segment where the dart locates);
- Select tool;
- Left-click any endpoint of the segment (the one you click is the fixed point);
- Now it shows the state of dart closing, you can modify the segment by dragging it; (if the piece is too small to modify, press the Space key on your keyboard and roll the mouse wheel to enlarge the view) > #### NOTE > Modify it in two ways: > 1. Left-click the desired point and drag it to the position you wish, release the button; or left-click the segment without releasing the button, drag it to a curve directly. > 2. Select the desired point, modify it by using the arrow keys on your keyboard.
- Modify the segment. Right-click to finish modification. >

- Select desired element (the segment where the shirring locates);
- Select tool:
- Left-click any endpoint of the segment (the one you click is the fixed point);
- Now it shows the state of shirring closing, you can modify the segment by dragging it; (if the piece is too small to modify, press the Space key on your keyboard and roll the mouse wheel to enlarge the view) > #### NOTE > Modify it in two ways: > 1. Left-click the desired point and drag it to the position you wish, release the button; or left-click the segment without releasing the button, drag it to a curve directly. > 2. Select the desired point, modify it by using the arrow keys on your keyboard.
- Modify the segment. Right-click to finish modification. >

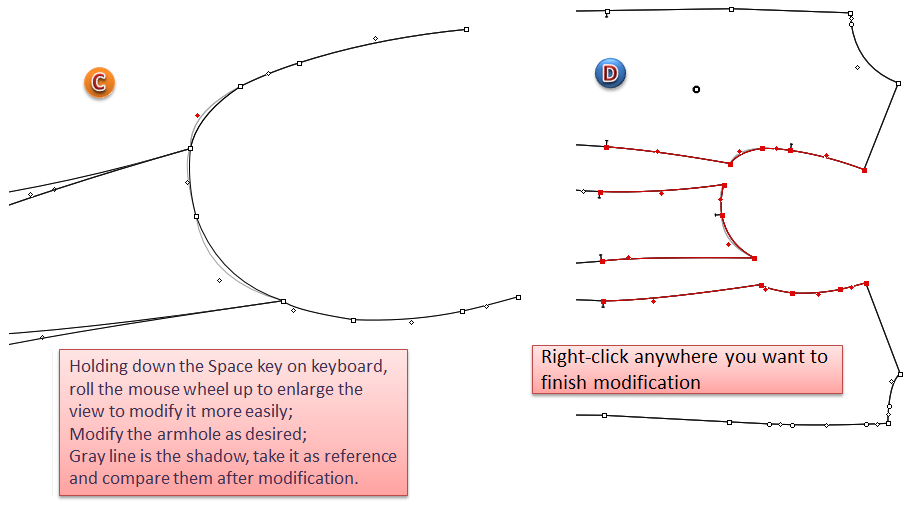

For example, simulate to sew the pieces together, modify the shape of armhole.

- Select the desired segment;
- Select tool;
- Left-click the first point (the point on the first section), the second point (the one on the second section), and the third point one by one;
- Now it shows the state of side seams sewing together, you can modify the shape of armhole by dragging it (if the piece is too small to modify, press the Space key on your keyboard and roll the mouse wheel to enlarge the view); > #### NOTE > Modify it in two ways: > > 1. Left-click the desired point and drag it to the position you wish, release the button; or left-click the segment without releasing the button, drag it to a curve directly. > > 2. Select the desired point, modify it by using the arrow keys on your keyboard.
- Modify the shape of armhole. Right-click to finish modification. > > >

It shows the measurements of the segments and calculates the difference between segments; and allow users to modify the measurements as desired.

For comparing the results easily, select [Shadow] function.

- Select two desired segments;
- Select tool;
- Left-click one of the start point (as the fixed point) of the segment (as Segment A), then click another start point of the segment (as Segment B)
- It simulates the process of sewing (press Space key to skip this process)
- Dialog box appears, allows users to view or change the values, or select desired items, then click [OK] to confirm.

- Modify the value of Segment A, the change will apply on the Segment A (first-click segment) > 1. Modify the value of Segment B, the change will apply on te Segment B (second-click segment) > 2. Modify the value of Difference, the change will apply on the Segment B (second-click segment)

- Select two desired segments;
- Select tool;
- Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, the cursor turns to a cross, left-click one of the start point (as the fixed point) of the segment (as Segment A), then click another start point of the segment (as Segment B)
- It simulates the process of sewing (press Space key to skip this process)
- Dialog box appears, allows users to view or change the values, or select desired items, then click [OK] to confirm.

Allows users to obtain or modify information about the length of the selected segment(s).

- Select the desired segment(s);
- Select tool;
- Click one of the extremities of selected segment (takes this point as fixed start point, then the other is end point)
- Dialog box opens, enter desired value or select option (if no option is selected, the added measurement is added proportionally to the entire segment), then click [OK]

- Distance to add on axis:

Distance in X >

Distance in Y > 2. Do not move extreme points:

3. Move the end point only:

4. Move on X only:

5. Move on Y only:

- Select the desired segment
- Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, click one of the extremities on the segment (first-click point as fixed start point, the other is end point)
- Click the fixed point where the measurement starts. The point must be at the extremity of a segment. The Graded Segment Lengths dialog box appears. It displays the measurements of all sizes, double-click to select the size(s) to be modified, or click the value and click [Modify] button to change it;
- After modification, click [OK] button.

For example:

The bodice piece is graded. Now copy the graded value of the armhole to the one without grading:

Steps:

- Measure the armholes lengths of all sizes by using Ruler tool;
- The dialog box appears, select the values of corresponding items ([Length]/[Difference]/[Step]), like selecting all the values under [Length] item;
- Click [Copy] button, then close the dialog box;
- Measure the back sleeve cap line by using Segment Length tool;
- The dialog box appears, select values of all sizes under [Length] item (according to the former copied items);
- Click [Paste] button, then click [OK].

Allows users to read the angle of a segment and change it to a precise angle, if necessary.

- Select desired segment;
- Select tool;
- Click the fixed point (must be one of the extremities of the segment);
- Enter value in the dialog box, then click [OK].

Example of New Angle option: >

Example of Opening Value option:

- Select the desired part;
- Select tool;
- Hold down Alt (Windows)or Option (Macintosh)or Alt+Windows (Linux) key;
- Click the point to be spread (Opening side), the dialog box appears;
- Enter value and click [OK] button.

Allows users to copy the shape and/or measure of a segment and paste it over another segment.

- Hold down Shift key to select the elements you wish to copy; > #### NOTE > Two segments must be from the different shapes.
- Select tool;
- Click the starting point of the segment to be copied (Point 1);
- Select desired options and click [OK] button;
- Click the starting point of the shape to be pasted upon (Point 2).

Allow users to reshape a piece on selected points, which improve the efficency of pattern-making.

How to do:

- Select a segment with at least 3 points;
- Select tool;
- Click the first point, then the last point (it will sort the points according to the first point and last point)
- Enter desired value in dialog box, then click [OK].

Allow users to join two different shapes; or split one shape into two pieces.

- Select two segments need to join together;
- Select tool;
- Click the fixed point of the first shape and the one of second shape (hold down Shift key to save the style line)

- Select the style line and all the segments that are on on side of the shape need to be split (must be a closed contour);
- Select tool;
- Click on the style line.

New in V7.0

Allow users to split the pattern piece with seam allowance.

- Select the axis of reflextion of the piece wish to reflect;
- Select tool;
- Click the selected segment (axis), it unfolds into a complete piece;

4. If you don’t remove the axis, one side change and another side also change;

5. If remove it, one side change but another doesn’t change;

- Select the axis;
- Select tool;
- Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, click the axis, dialog box appears. Enter value and click [OK] button.

- Select the axis;
- Select Menu [Treatment] - [Item Info];
- The dialog box appears;
- Select [Close Piece] option, then click [OK] button

Allow users to develop a pleat on a piece.

- Activate the piece;
- Select tool;
- Click the first reference point (A), then click the second reference point (B), click the fixed part of the piece;
- The dialog box appears, select pleat type, enter values, and click the punch holes and notches (if necessary), then click [OK] button. >

- Add points to segments (Segment e & Segment f), for example, if you want to develop 7 pleats, then add 7 points on each segment;
- Select all new-added points, then select tool;
- Click a point (E.g. Point E) on Segment e, then click corresponding Point F on segment f; > #### NOTE > The click point is fixed point, the pleats will develop according to it.
- The dialog box appears, select pleat type, enter values, and click the punch holes and notches (if necessary), then click [OK] button.

> #### NOTE > Allow value 0 in the Width of Side A but not in the Width of Side B. So if develop a pleat with one side of value 0, note the order of clicking: first click is Pleat A, and second click is Pleat B.

Allow users to create a dart within a shape from its contour.

- Activate the piece;
- Select tool;
- Click the fixed point, then click the segment indicating the position of the dart, and then click the part of the piece that remains fixed;
- The dialog box appears, enter desired value and click [OK] button.

- Draw a segment on desired location, it is the central line of the new dart;
- Select the segment;
- Select tool;
- Click the start point;
- Dialog box appears and enter value, click [OK].

- Add points to desired location, then drag out dart-shaped opening;
- Select tool;
- Hold down Option (Mac) or Alt (Windows) key, click the tip;
- Dialog box appears and enter value, click [OK].

- Draw a segment on desired location;
- Select tool;
- Click a start point (A);
- Enter value in the dialog box, click [OK].

New in V7.0

We sort out the darts in the dialog box: Cone, Bullet, Double-pointed Dart, make it more simple to check; the corresponding position of the dart will be highlighted in purple when enter the value.

Allow users to pivot a dart to a new location.

- Add a point to desired location where you would like to move the dart;
- Select the point and the original dart;
- Select tool;
- Click the point where the original dart has to be closed, then click the point where you would like to move the dart;
- Enter value and click [OK].

> >

The dart will move to the side according the clicking point in 4th step.

- Draw an internal segment;
- Select the segment and the dart;
- Select tool;
- Click the point on which the original dart is closing;
- Dialog box appears, enter value and click [OK] button.

> #### NOTE > The dart will transfer to the side according the clicking point in 4th step.

Use this tool creates shirring.

- Select a pivot point and the segment where you wish to place the shirring;
- Select tool;
- Click the pivot point;
- Dialog box opens, enter desired value and click [OK];

- Select a pivot point and the segment where you wish to place the shirring;
- Select tool;
- Hold down Alt (Windows) or Option (Macintosh) or Alt+Windows (Linux) key, click the pivot point;
- Dialog box opens, enter desired value and click [OK];

Allows users to add seam allowances to the contour of a pattern piece. This tool must work on Pieces View, not on Plan View, so users need to set the pieces first.

For more information about how to set piece, please refer to Chapter Two Menu [Treatment] Menu section.

- Select the desired segment;
- Select tool;
- Click the selected segment, enter value in the dialog box, click [OK].

4. If you want to add same seam allowance value to the rest of the segments, repeat the former steps. It won’t influence the previous seam allowance.

- Left click to select the segment which you want to edit the seam allowance;
- click [Treatment]-[Item Info] to callout the “Seam Characteristics” box;
- Edit the value and click [OK] button to confirm the modification. >

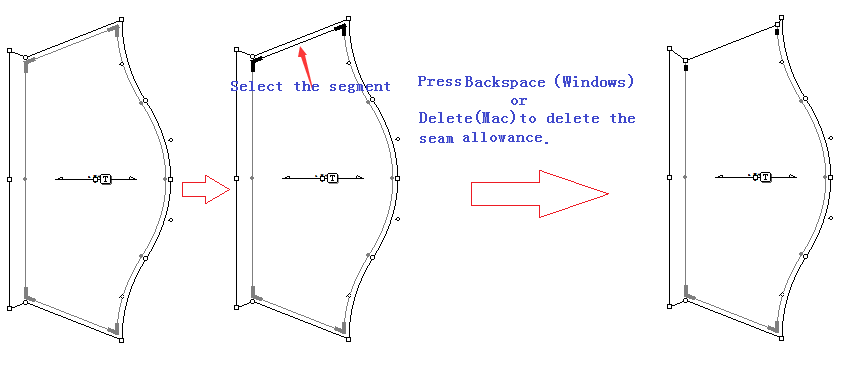

- Use pointer tool to left click to select the segment which you want to delete its seam allowance.
- Press Backspace(Windows) or Delete(Mac) key to delete the selected segment’s seam allowance.

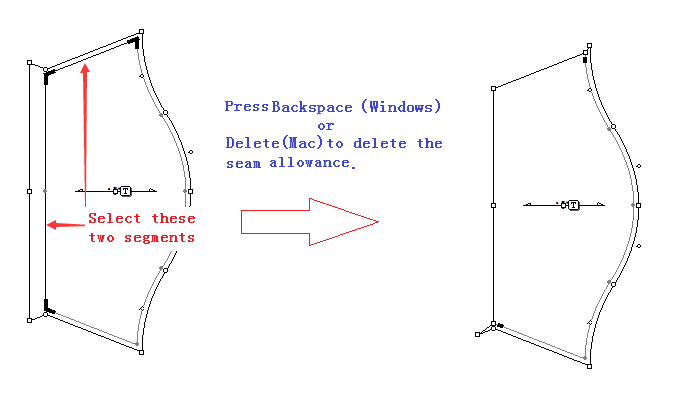

As the below picture shows, now need to delete the two segments’s seam allowance which the red arrows point.

1. Firstly, you need to add seam corner for the point which the green arrows pointed. The detail steps pls refer to the interduce of the Seam Corner tool. 2. Hold down the Shift key, use the pointer tool to left click to select the segments. 3. Press Backspace(Windows) or Delete(Mac) key to delete the selected segment’s seam allowance.

- Use pointer tool to box choose the whole piece.
- Press Backspace(Windows) or Delete(Mac) key to delete the selected piece’s seam allownace.

Allows users to create a Seam Corner on any sewing line’s mark or regular point. This tool creates a Seam Corner whenever two Seam Allowances meet. Users also can modify the corner if necessary.

- Activate the piece with seam allowance;
- Select tool;
- Click the sewing line point that requires the seam allowance corner;
- Dialog box appears, enter value and click [OK] button.

- Select the corner sign;
- Select Menu [Treatment] - [Item Info];
- The dialog box opens, modify the information, then click [OK] button.

Take Cut Normal as an example:

On garment sewing technology, there are technology requirement of swing to each side and swing to one side. So, the seam corner needs to be treated as users’ requirement like swing to each side, swing to one side and aligning seam corner. This new feature is created to help users treat the seam corner more easily and quickly.

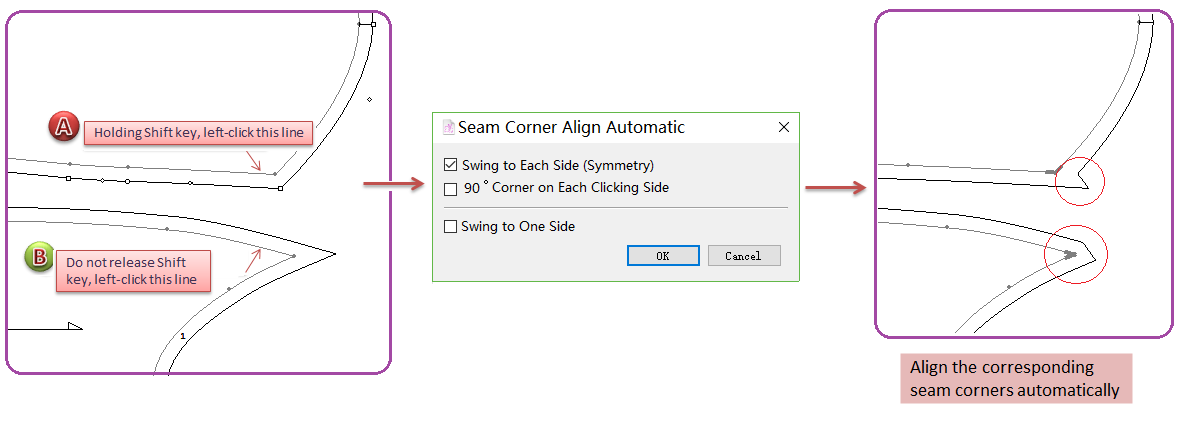

- Swing to each side

How to do:

- Holding the Shift key, left-click to activate two pieces;
- Left-click Seam Corner tool;
- Do not release the Shift key, left-click the segment of first desired piece, the cursor becomes a cross, left-click the segment of second piece;
- Dialog box appears, select [Swing to One Side] button;
- Click OK. >

Take the clicking segment as axis and add symmetry seam corner (take the first clicking segment as reference). As the example picture shows, take segment a as reference, the length of segment b is equal to segment a.

* 90°corner on each cliking side

How to do:

- Holding the Shift key, left-click to activate two pieces;
- Left-click Seam Corner tool;
- Do not release the Shift key, left-click the segment of first desired piece, the cursor becomes a cross, left-click the segment of second piece;
- Dialog box appears, select [90°Corner on Each Cliking Side] button;
- Click OK.

Take the clicking segment as axis and add 90 degree seam corner (take the first clicking segment as reference). As the example picture shows, take segment a as reference, the length of segment b is equal to segment a.

* swing to one side

How to do:

- Holding the Shift key, left-click to activate two pieces;
- Left-click Seam Corner tool;
- Do not release the Shift key, left-click the segment of first desired piece, the cursor becomes a cross, left-click the segment of second piece;
- Dialog box appears, select [Swing to One Side] button;
- Click OK.

Take the first clicking segment as reference. As the example picture shows, the length of segment b is equal to segment a,and segment c is equal to segment d.
