User can set piece from some part.

For example:

Set part A as a piece:

- Right-click the desired part, menu appears, click Set Piece from Cut;
- The contour of the part is in color, which means it is selected, in the meanwhile, Set Piece Dialog Box appears;
- Enter piece information or select desired options in the dialog box, click [OK] to save it.

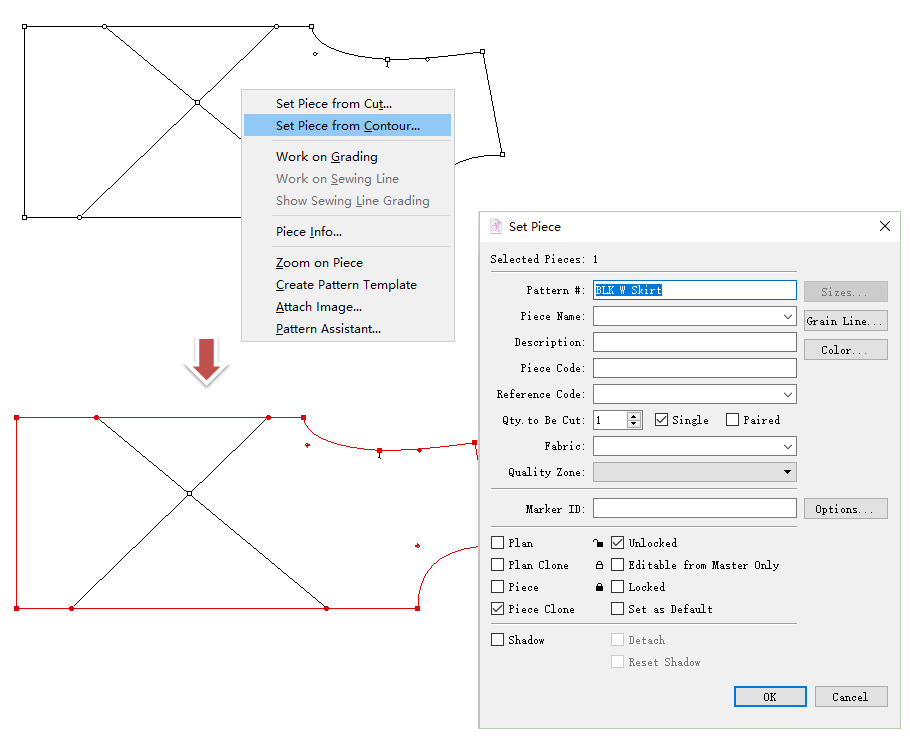

User can set the piece from the outmost contour.

User can view the grading nest or operate grading on the desired piece.

View grading nest:

Meanwhile, the grading tools appear:

For more information about grading, please refer to Chapter 4.

This function is the same as Work on Sewing Line in [View] Menu.

User can refer to the corresponding section in the manual.

This function is the same as Show Sewing Line Grading in [View] Menu.

User can refer to the corresponding section in the manual.

This function is the same as Piece Info in [Treatment] Menu.

User can refer to the corresponding section in the manual.

Enlarge the view of the desired piece to the central working area, facilitate user to view or modify the piece.

Allow user to add the desired piece into the pattern template list.

- Right-click the piece, select Create Pattern Template;
- Enter name, click [OK];
- Then this piece is added to the template list.

For more information about Pattern Template, please refer to the introduction of Menu [View] - [Show Pattern Template].

Allow user to add image on the piece directly, like the printing, embroidery and other images. User can plot them directly and does not have to stick the image by manual after printing the piece, which wastes time.

- Right-click on the desired position, pull-down menu appears, click [Attach Image…]；
- Dialog box appears, go to the desired path to select the image file, then click [OK].

Click menu [View] - [Show] -[Image] to show or hide image on the working area:

Select [Image] to show image;

Unselect it to hide image.

If the image doesn’t locate on your desired position, you can:

- Select [Pointer] tool, choose the image, hold down the left mouse button to drag the image to your desired position.
- Select [Pointer] tool, choose the image, press arrow keys on your keyboard to move the image to your desired position.

Rotate the image by freehand, or rotate it at N° round angle(N° is mutiples of 15°), or rotate it at precise angle value.

Rotate image by freehand

- Select desired image;
- Select tool;
- Click the fixed pivot point, then click anywhere you want, drag the pointer to rotate;
- Release the mouse button.

Rotate image at N° round angle

- Select desired image;
- Select tool;
- Click fixed pivot point, press Shift key without releasing it, then click anywhere you want and drag to rotate. It will rotate at N° (N° is mutiples of 15°).
- Release Shift key and mouse button.

Rotate image at precise angle

- Select desired image;
- Click tool;
- Holding down Alt key (Windows) or Option key (Macintosh), click the fixed pivot point;
- Dialog box appears, enter desired value, click [OK].

- Select tool;
- Select the desired image;
- Left-click the point at the upper left corner, drag it to resize the image.

Allow manipulate grading on the regular points at the buttom-left corner and upper-right corner.

How to do:

- Select the desired point (for example, the regular point at the upper-right corner);
- Click menu [Grade] - [Grading Info…] to open grading info dialog box;
- Enter values, click [OK]. >

When you save the pattern file (.sty), the image will also be save under the same path (pattern file and image file are saved in the same directory). Image format is .pmg, shown as following picture:

If:

- change the name of pattern file (.sty);
- change the name of image file (.pmg);
- the pattern file (.sty) and image file (.pmg) are in different path (Error moving file or lost sending file);

then it will lost the image file (that’s to say, fail to read corresponding image file while open the pattern file), dialog box appears:

Continue - select image file manually;

Cancle - close dialog box, and replace the image with a rectangle shape.

Print the image while print the pattern file.

Now PAD OEM Plotter & HP (Hewlett Packard) Printer can print the pattern piece and its images. Other printer or plotter can print its frame only.

Export the pattern file with images as other formats, like DXF-AAMA, DXF-ASTM, Illustrator (.txt), Plotting File (.plt). Then the image will be shown as a rectangle:

To check if there is any error on the desired piece.

For more information about Pattern Assistant, please refer to the section of [Treatment] Menu - Pattern Assistant.
